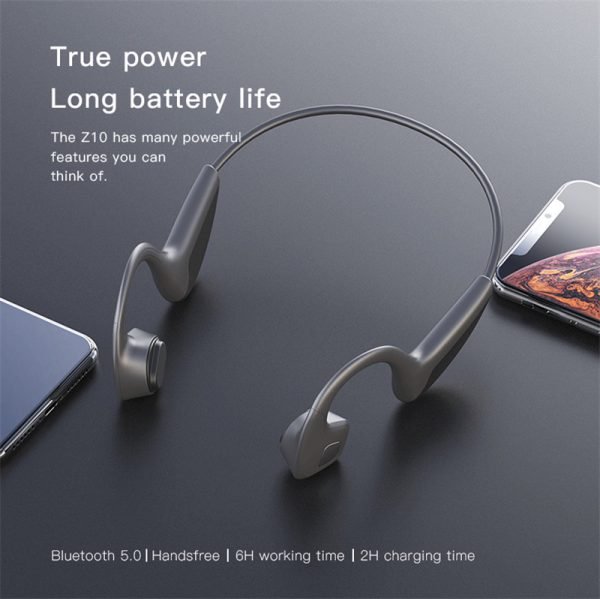

Basic Spec

Blue tooth IC: CSR8635

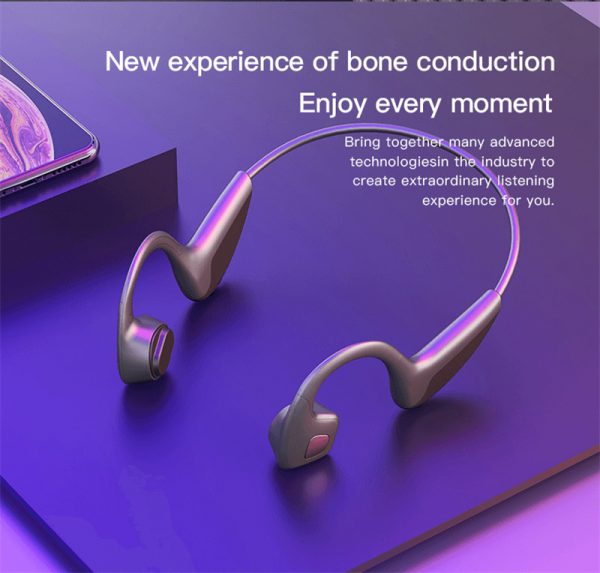

Speaker Type: Bone-conduction technology speaker, 1w dual speaker

Battery: 200mAh Power battery

Mic: Anti-interference microphones, 42DB

Playtime: 6h

Standby time: 10days

Effective range: 10m (33feets)

Mono/Stereo: Stereo

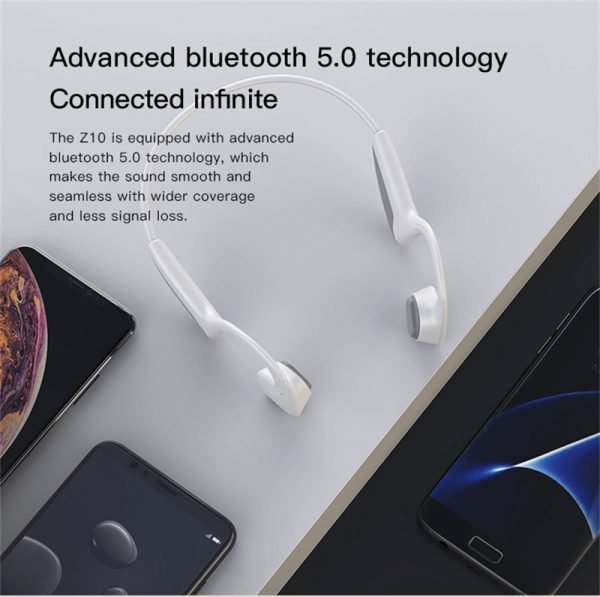

Bluetooth Version: V5.0

Weight: 36g

Bluetooth Class(1/II):: Class II

BQB included(Y/N):: No

Bluetooth Profile: a2dp/HFP, HSP, AVRCP, GAVDP, AVDTP

Receiving Sensitivity: 88dBm

Impedance: 8Ω

Frequency range: 20-20KHz

FM: No

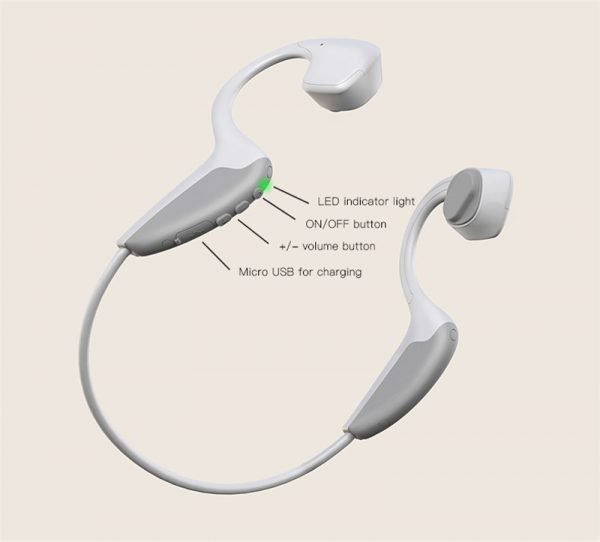

Charging: MIC USB port and need 2hour

TF card: No

system language: English Prompt tone is English

Red light flashing rapidly: low Power

Red Light on: charging

Blue Light on: full charged

Blue and red lights flashing: Matching

Blue light flash Slowly: Matched/dialing/playing audio.

Blue light flashing Rapidly: call coming

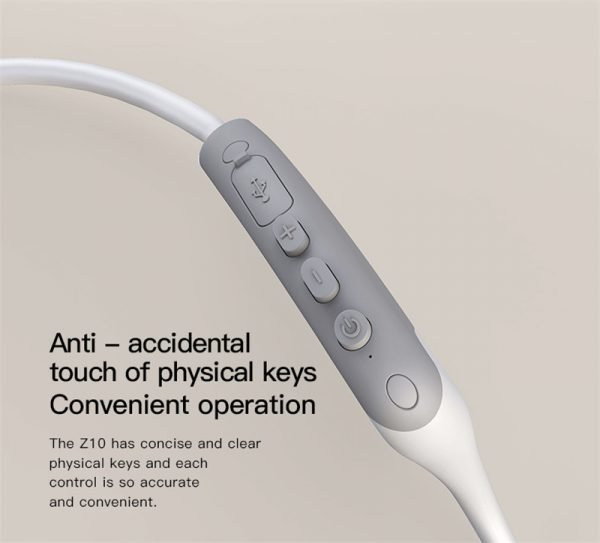

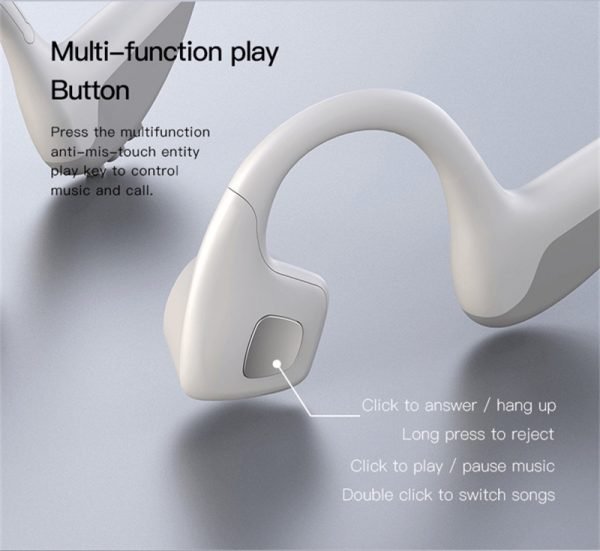

Answer call: Click the Multifunction button

Ending call: Click the Multifunction button

Reject call: Long press Multifunction button for 1s

Volume control: click the vol button “+” “-”

Play/Pause phone music: Press the Multifunction button

Power on: Long press power button for 3s seconds

Power off: Long press power button for 3s

matching: Long press Multifunction button for 3s

Up/down: Long press “+””-” for 2s

1. Long press the power button for 3 seconds to power on the headphones

2. The red and blue lights flash alternately when entering the pairing mode after the Bluetooth headset power on(if it doesn’t enter pairing mode, please press the Multifunction Button

for 3 seconds until the red and blue lights flash alternately)

3. Open the Bluetooth function on your cell phone or the devices with Bluetooth function. Then search the Bluetooth devices and choose the pairing name “Z10“.Enter the “0000“ pin code if needed.

Notes:

1. When the distance between the Bluetooth headphones and the Bluetooth devices is far than 10 meters of 33 feet, the Bluetooth headphones will disconnect from the devices. After that, once they are in the range of 33 feet, they will automatically reconnect. However, if the Bluetooth headphones with the devices disconnect more than 3 minutes, you may need to double click the “Multifunction Button” to reconnect the devices.
2. If the Bluetooth headphones are paired, long-press the “Multifunction Button” for 3 seconds, the Bluetooth headphones reenter the pairing mode which another cellphone can find the Bluetooth headphones and connect them.
